Cruise Control Switch: Locations

Component ID: 364

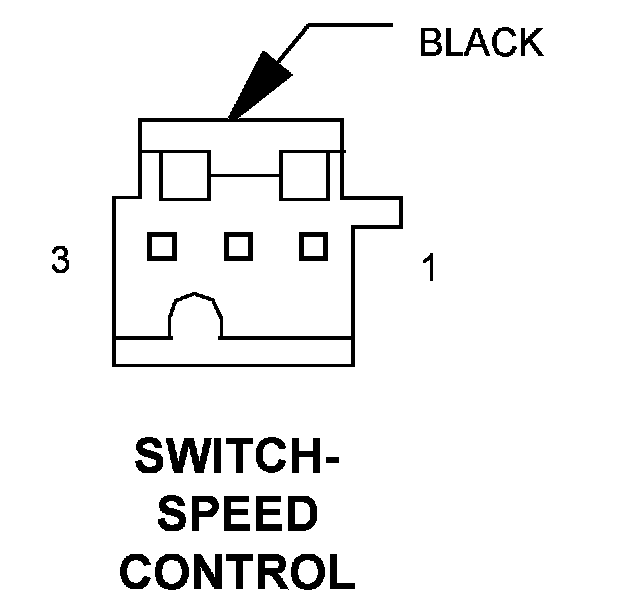

Component : SWITCH-SPEED CONTROL

Connector:
Name : SWITCH-SPEED CONTROL
Color : BLACK
# of pins : 3




Pin Description Circuit
1 S/C SIGNAL 2 V72 20PK
2 S/C SIGNAL 1 V71 20VT
3 S/C SWITCH GROUND V937 20YL

Component Location - 33
