Crankshaft Position Sensor: Diagrams

Component ID: 296
Component : SENSOR-CRANKSHAFT POSITION

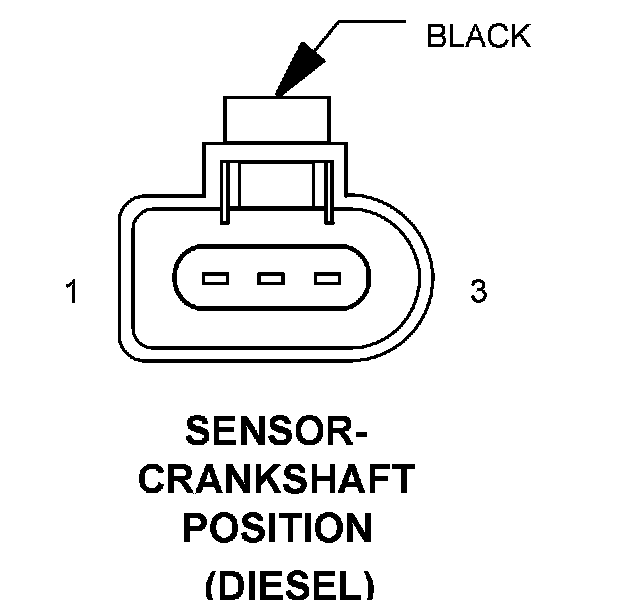

Connector:
Name : SENSOR-CRANKSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (DIESEL)




Pin Description Circuit
1 CKP SENSOR 5 VOLT SUPPLY K853 20DB/BR
2 CKP SENSOR SIGNAL K24 20BR/LB
3 CKP SENSOR GROUND K925 20DB/WT

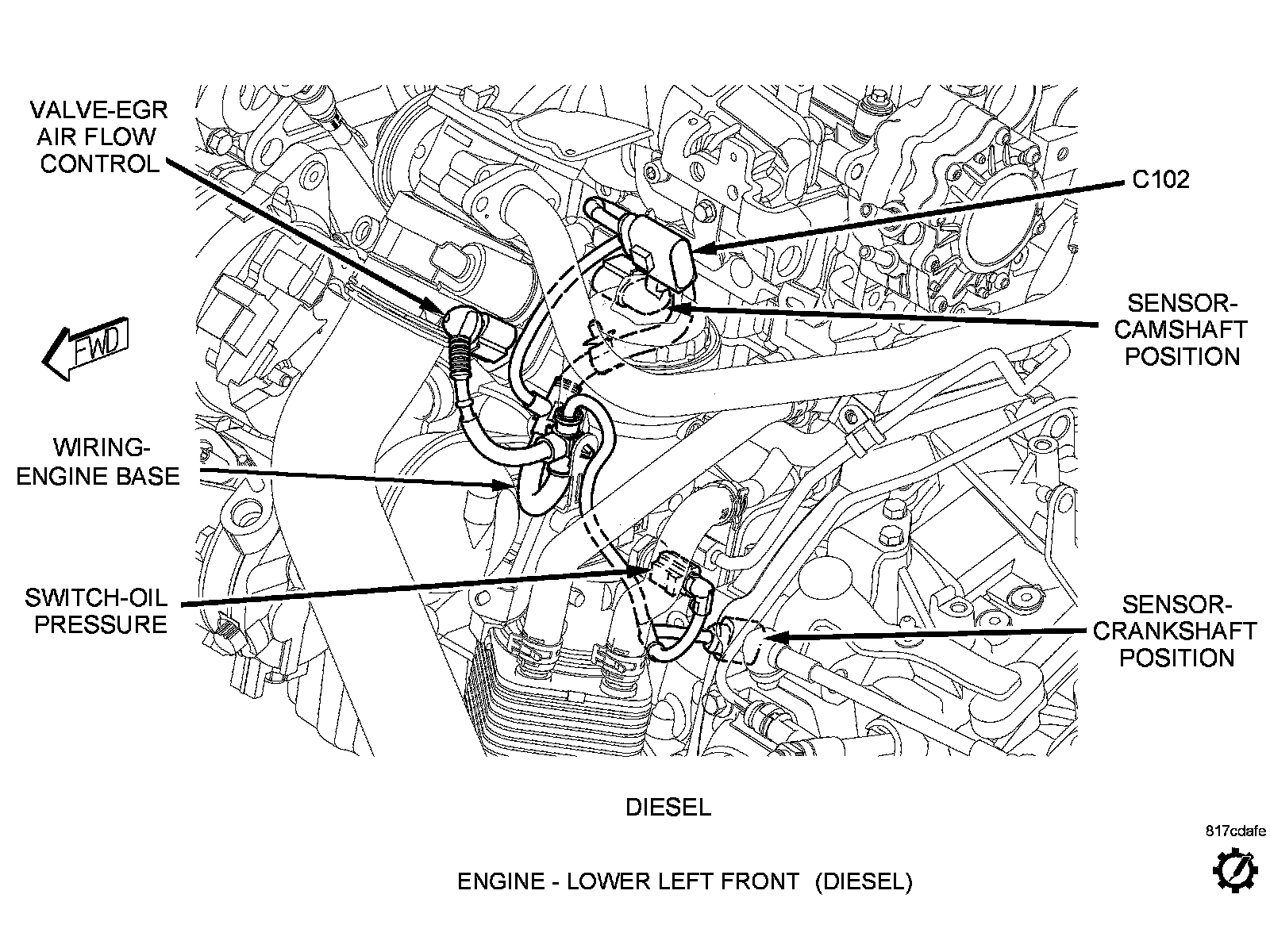

Component Location - 16




Component Location - 19




Component Location - 17

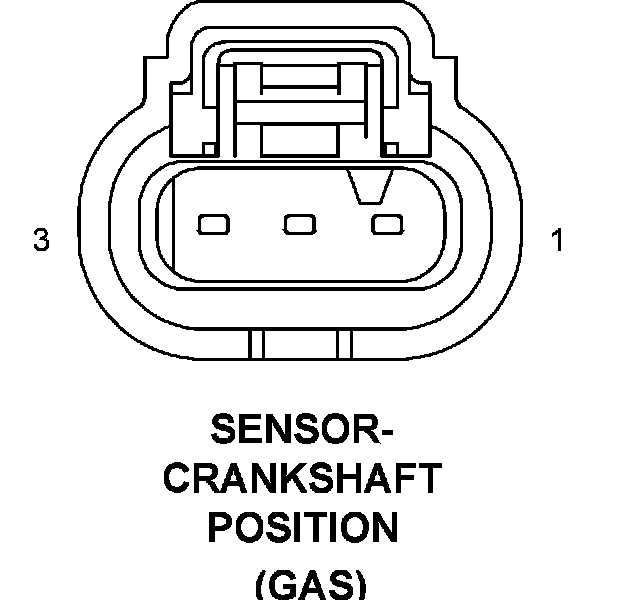

Connector:
Name : SENSOR-CRANKSHAFT POSITION
Color :
# of pins : 3
Qualifier : (GAS)




Pin Description Circuit
1 5 VOLT SUPPLY F855 20PK/YL
2 SENSOR GROUND K900 20DB/DG
3 CKP SIGNAL K24 20LB/BR

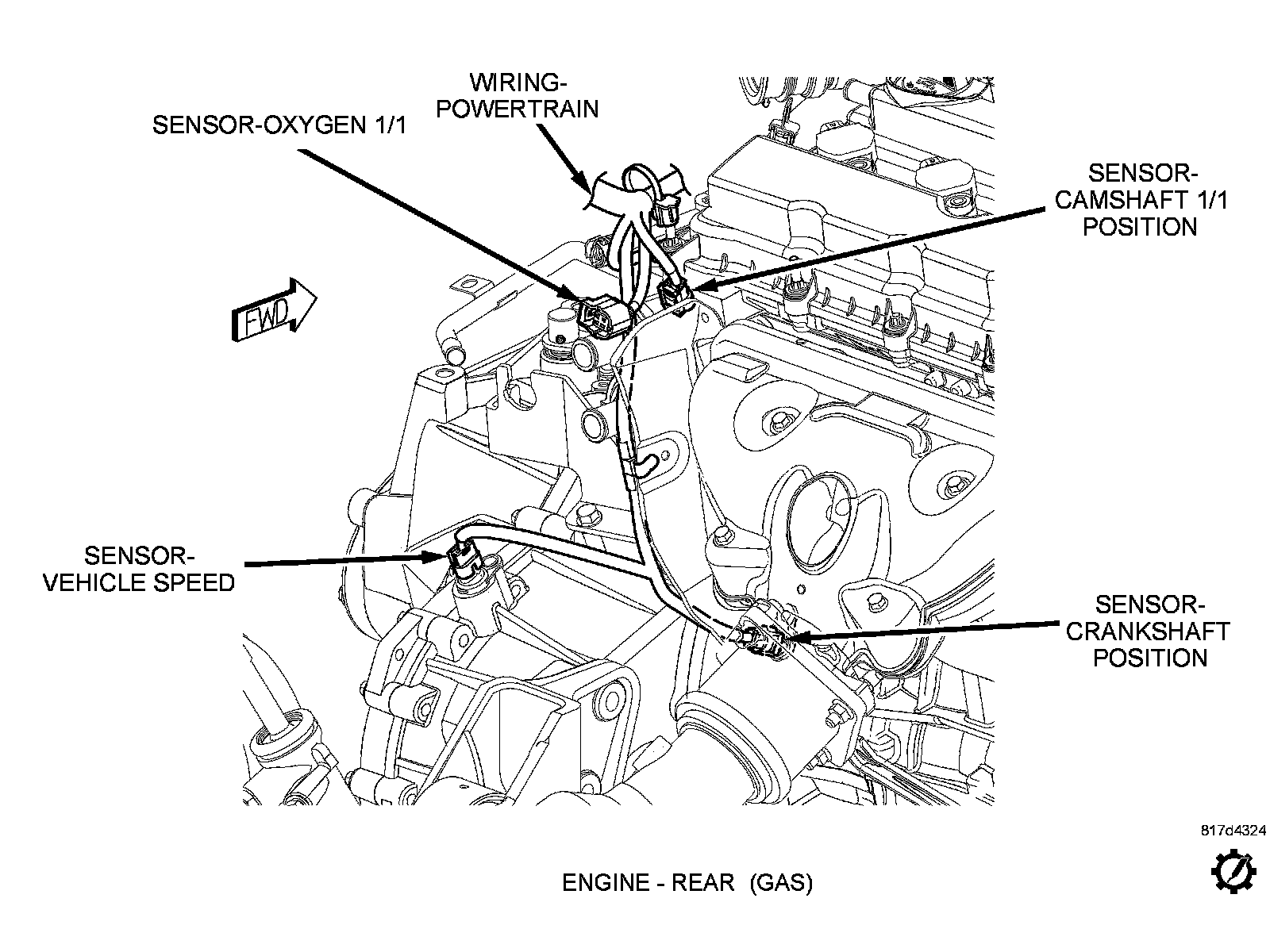

Component Location - 16




Component Location - 19




Component Location - 17
