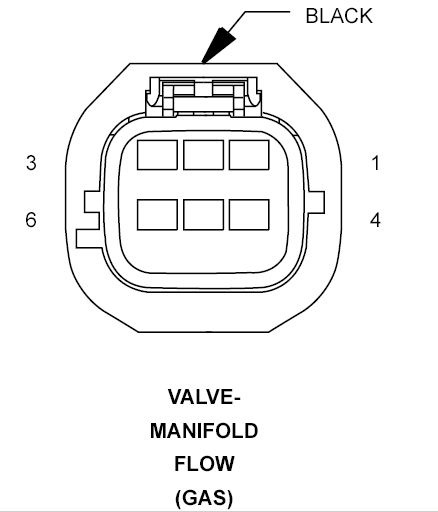

Manifold Flow Valve (Gas) Connector End View
VALVE-MANIFOLD FLOW - BLACK 6 WAY (GAS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z909 16BK/WT |
GROUND |
| 2 |
- |
- |
| 3 |
K601 20BR/VT |
MFV CONTROL |
| 4 |
K900 20DB/DG |
SENSOR GROUND |
| 5 |
K602 20YL/DB |
MFV SIGNAL |
| 6 |
K857 20BR/LG |
5 VOLT SUPPLY |
