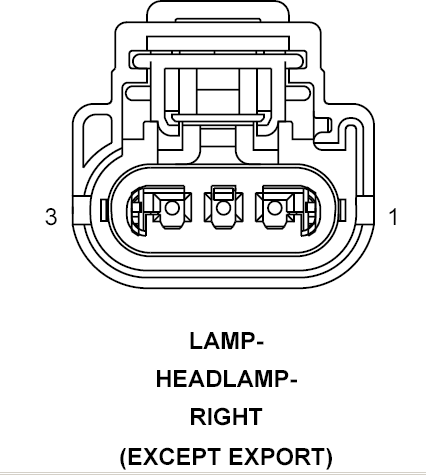

Right Headlamp Lamp (Except Export) Connector End View
LAMP-HEADLAMP-RIGHT - 3 WAY (EXCEPT EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L44 20VT/RD |
RIGHT LOW BEAM OUTPUT |
| 2 |
Z908 20BK/PK |
GROUND |
| 3 |
L34 20WT/GY |
RIGHT HIGH BEAM OUTPUT |
