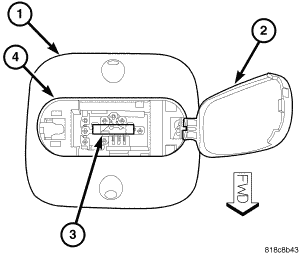

Intrusion Transceiver Module
Courtesy of CHRYSLER LLC
- Position the Intrusion Transceiver Module (ITM) (1) to the mounting hole in the headliner.
- Reconnect the wire harness connectors to the ITM and rear dome lamp connector receptacles on the back of the ITM.
- Insert the fixed retainer on the left side of the ITM housing up into the left side of the mounting hole in the headliner.
- Slide the notched end (4) of the housing into the mounting hole far enough to engage the rear dome lamp lens hinge/retainer into the opposite side of the hole in the headliner.
- Gently and evenly press the lens hinge/retainer end of the lamp into the mounting hole until the bezel of the ITM housing is flush with the headliner.
- Swing the notched end of the lamp lens (2) into position against the lamp housing, then press upward on the lens firmly and evenly until it snaps into the housing.
- Reconnect the battery negative cable.
