Engine Control Module (ECM)

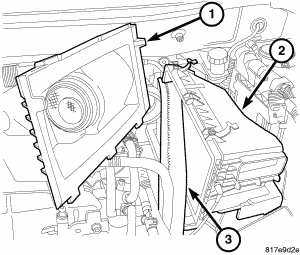

Fig 1: ENGINE CONTROL MODULE
GC0053305Courtesy of CHRYSLER LLC

The ECM is located in the left side of engine compartment attached to the left inner fender behind the air cleaner housing (2).
