Final Drive Control Module

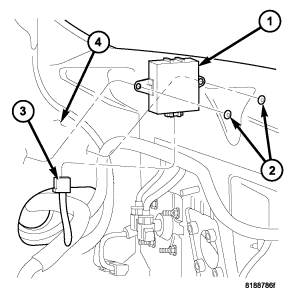

Fig 1: ECC CONTROL MODULE
GC0053304Courtesy of CHRYSLER LLC
  1. Plug ECC module in (3).
  2. Move into place, install bolts (2) and tighten to 11 N.m (97 in. lbs.).
  3. Install the left front kick panel. Refer to INSTALLATION .
