Module-Powertrain Control (Pcm)

USE THE SCAN TOOL TO REPROGRAM THE NEW POWERTRAIN CONTROL MODULE (PCM) WITH THE VEHICLES ORIGINAL IDENTIFICATION NUMBER (VIN) AND THE VEHICLES ORIGINAL MILEAGE. IF THIS STEP IS NOT DONE, A DIAGNOSTIC TROUBLE CODE (DTC) MAY BE SET.

To avoid possible voltage spike damage to PCM, ignition key must be off, and negative battery cable must be disconnected before unplugging PCM connectors.

1. Disconnect negative battery cable.

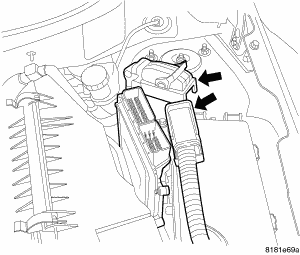

   Fig 1: WIRING CONNECTOR

   Courtesy of CHRYSLER LLC
2. Unlock and disconnect the electrical connectors from PCM.

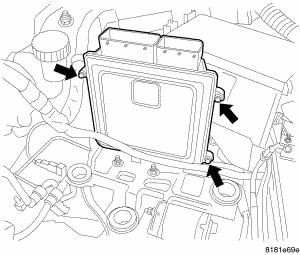

   Fig 2: MOUNTING BOLTS

   Courtesy of CHRYSLER LLC
3. Remove the air cleaner box.
4. Remove the three mounting bolts.

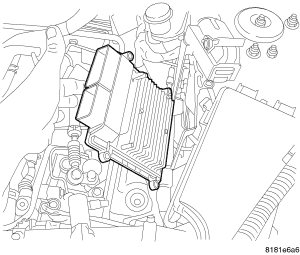

   Fig 3: MODULE OUT

   Courtesy of CHRYSLER LLC
5. Tip module out and remove from bracket.
