Module-Traffic Message Center: Installation

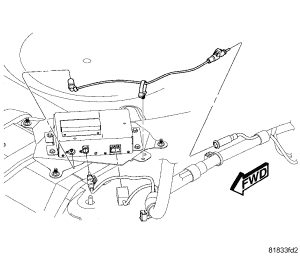

Fig 1: Removing/Installing Traffic Message Center Module
GC0053505Courtesy of CHRYSLER LLC
  1. Install TMC.
  2. Install the mounting fasteners.
  3. Connect the wire harness connector.
  4. Connect the antenna cables
  5. Connect battery negative cable.
