Diagnostic Test

1) INTERMITTENT CONDITION
Turn the ignition on.

With the scan tool, clear all Audio DTC's.

Turn the radio on.

With the scan tool, read the DTC information.

Does the Scan Tool read: B140F-REAR RIGHT AUDIO SPEAKER OUTPUT CIRCUIT OPEN?

Yes
1. Go To 2).
No
1. The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
2. Perform BODY VERIFICATION TEST - VER 1 .
2) (X52) (X58) SPEAKER OUTPUT CIRCUITS

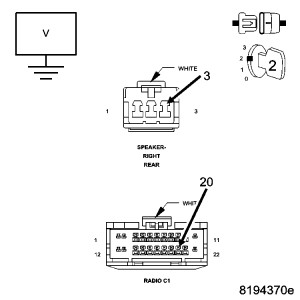

Fig 1: (X52) (X58) Speaker Output Circuits
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Radio C1 harness connector.

Disconnect the Rear Right Audio Speaker connector.

Measure the resistance of each speaker (X52)(+) and (X58)(-) circuit between the radio and the speaker.

Is the resistance below 5.0 ohms for each circuit?

Yes
1. Go To 3).
No
1. Repair the applicable Output Speaker circuit for an open condition.
2. Perform BODY VERIFICATION TEST - VER 1 .
3) SPEAKER

Fig 2: Checking (X58) Speaker (-) Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Rear Right Audio Speaker.

Turn the ignition on.

Turn the radio on.

With the scan tool, clear all Audio DTC's.

With the scan tool, read the DTC information.

Does the scan tool read: B140F-REAR RIGHT AUDIO SPEAKER OUTPUT CIRCUIT OPEN?

Yes
1. Replace the speaker in accordance with the service information.
2. Perform BODY VERIFICATION TEST - VER 1 .
No
1. Test Complete.
