Rear Driveline Module

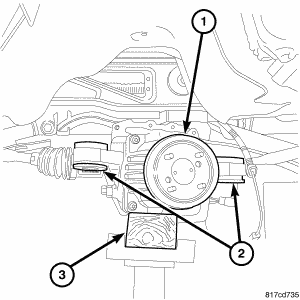

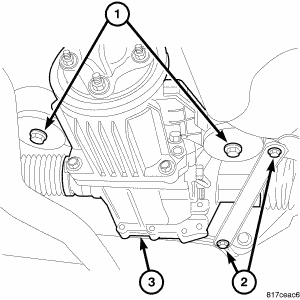

Fig 1: REAR AXLE REMOVE AND INSTALL

Courtesy of CHRYSLER LLC

Lift driveline module (1) with a transmission jack while installing both axles (2). See Fig 1.

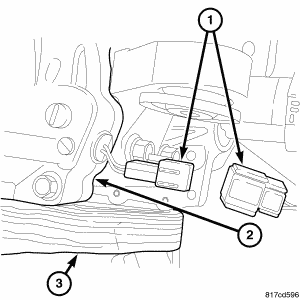

Fig 2: Driveline Module Electrical Connectors
Courtesy of CHRYSLER LLC
Connect breather hose to ECC.
Connect the electrical connector (1).
Install wire harness bracket and two mounting bolt and tighten to 10 N.m (89 in. lbs.).

Fig 3: REAR AXLE REMOVE AND INSTALL
Courtesy of CHRYSLER LLC
Lift driveline module into place.

Fig 4: Driveline Module Mounting Bolts
Courtesy of CHRYSLER LLC
Install the two driveline module side mounting bolts (1) and tighten to 102 N.m (75 ft. lbs.). See Fig 4.

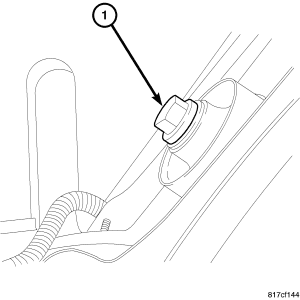

Fig 5: REAR BOLT AT AXLE
Courtesy of CHRYSLER LLC
Install the one rear driveline module mounting bolt (1) and tighten to 102 N.m (75 ft. lbs.). See Fig 5.

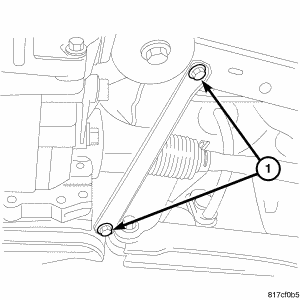

Fig 6: RIGHT STAY BAR
Courtesy of CHRYSLER LLC
Install right side stay bracket and tighten to bolts (1) 61 N.m (45 ft. lbs.) See Fig 6.

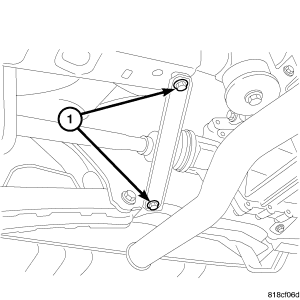

Fig 7: LEFT SIDE STAY BAR
Courtesy of CHRYSLER LLC
Install left side stay bracket and tighten to bolts (1) to 61 N.m (45 ft. lbs.). See Fig 7.
Install the propeller shaft. See INSTALLATION .
Fill the rear axle with fluid.

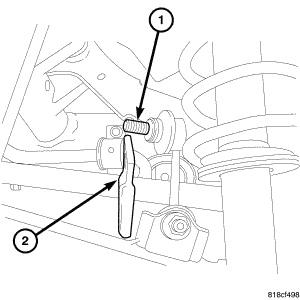

Fig 8: SWAY BAR
Courtesy of CHRYSLER LLC
Roll sway bar (2) into place if equipped. See Fig 8.

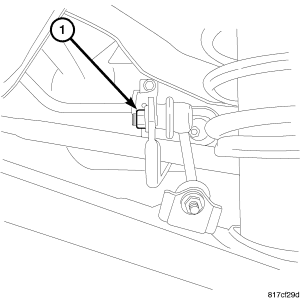

Fig 9: LEFT SIDE SWAY BAR NUT
Courtesy of CHRYSLER LLC
Install left side sway bar nut (10 and tighten to 61 N.m (45 ft. lbs) (1) if equipped. See Fig 9.

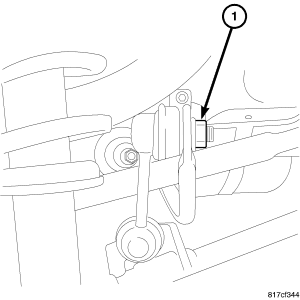

Fig 10: RIGHT SWAY BAR NUT
Courtesy of CHRYSLER LLC
Install right side sway bar nut (1) and tighten to 61 N.m (45 ft. lbs) (1) if equipped. See Fig 10.
Install the exhaust. Refer to INSTALLATION .
Install the wheels. Refer to DIAGNOSIS AND TESTING .
