Compass Module Connector End View

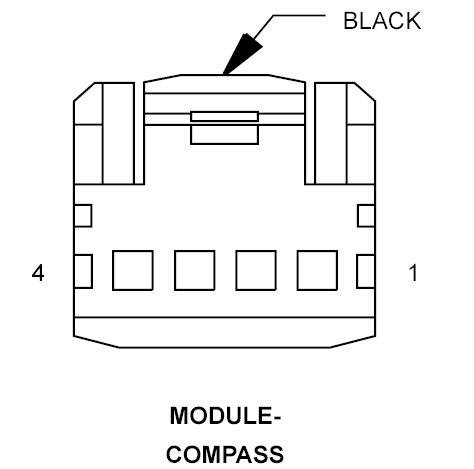

MODULE-COMPASS - BLACK 4 WAY

GMK880180Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 D506 20WT/DG LIN BUS
3 Z937 20BK/YL GROUND
4 F929 20PK/RD FUSED IGNITION SWITCH OUTPUT (RUN)
