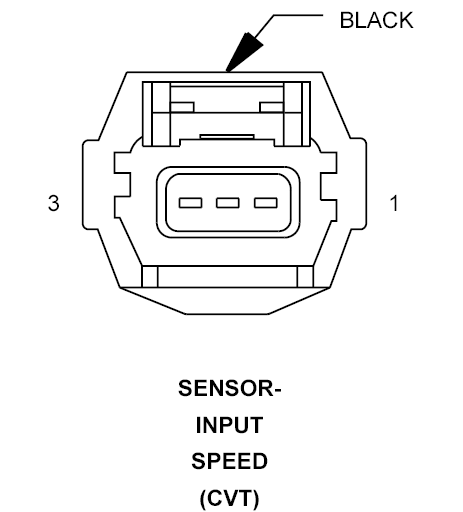

Input Speed Sensor (Continuously Variable Transmission) Connector End View
SENSOR-INPUT SPEED - BLACK 3 WAY (CVT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
T16 18YL/OR |
TRANSMISSION CONTROL OUTPUT |
| 2 |
T14 18DG/BK |
INPUT SPEED SIGNAL |
| 3 |
T13 18DG/TN |
SENSOR GROUND |
