Steering Column: Notes

NOTE: Assemble the column components in the order shown in illustration to ensure proper installation of all components.

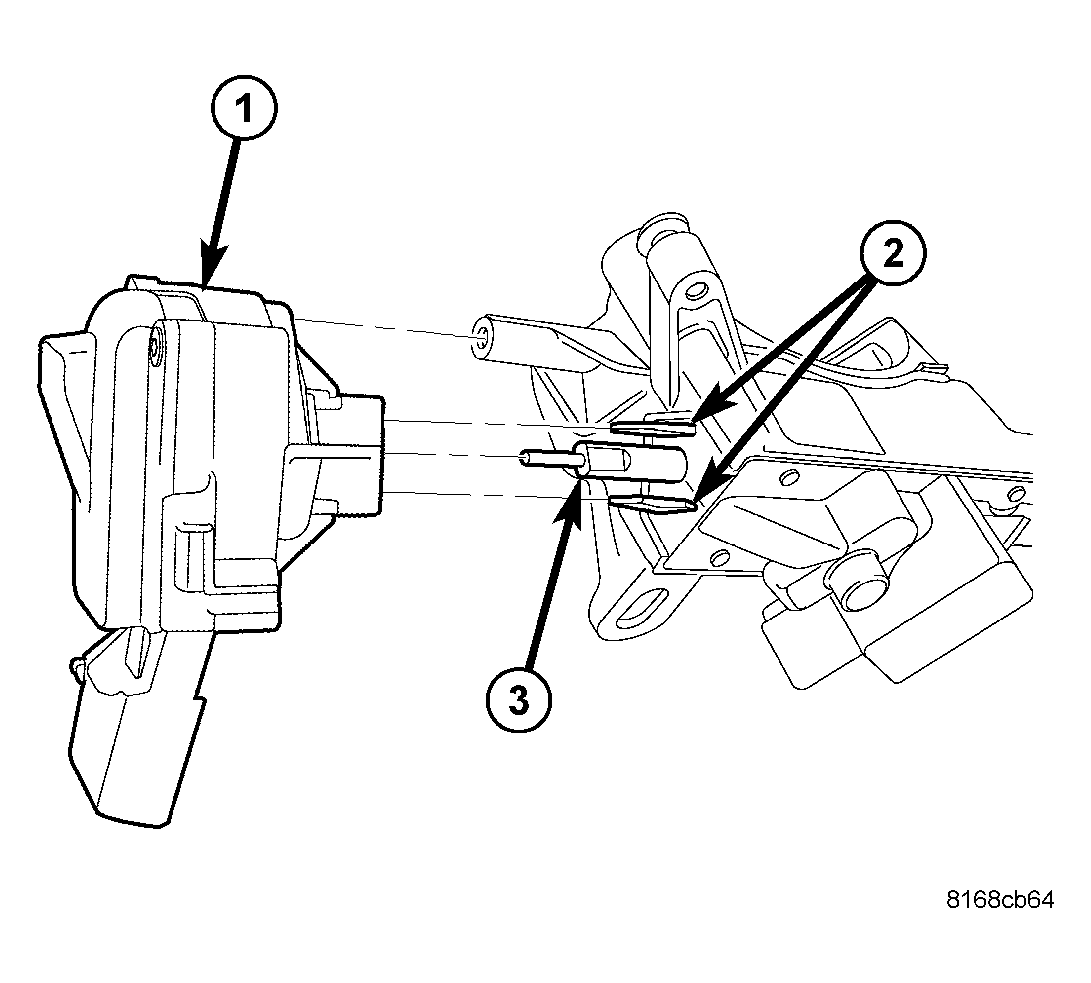

Fig 1: IGNITION SWITCH REMOVAL/INSTALLATION

Courtesy of CHRYSLER LLC

Ensure the ignition switch is in the RUN position and the actuator shaft in the lock housing is in the RUN position.
CAUTION: Use care when installing the ignition switch on the lock cylinder housing to avoid damaging the key-in plunger (3).
Align the ignition switch with the key-in plunger (3), actuator shaft and retaining tabs (2) located on the lock cylinder housing. Carefully install the switch, snapping it into place over the retaining tabs.

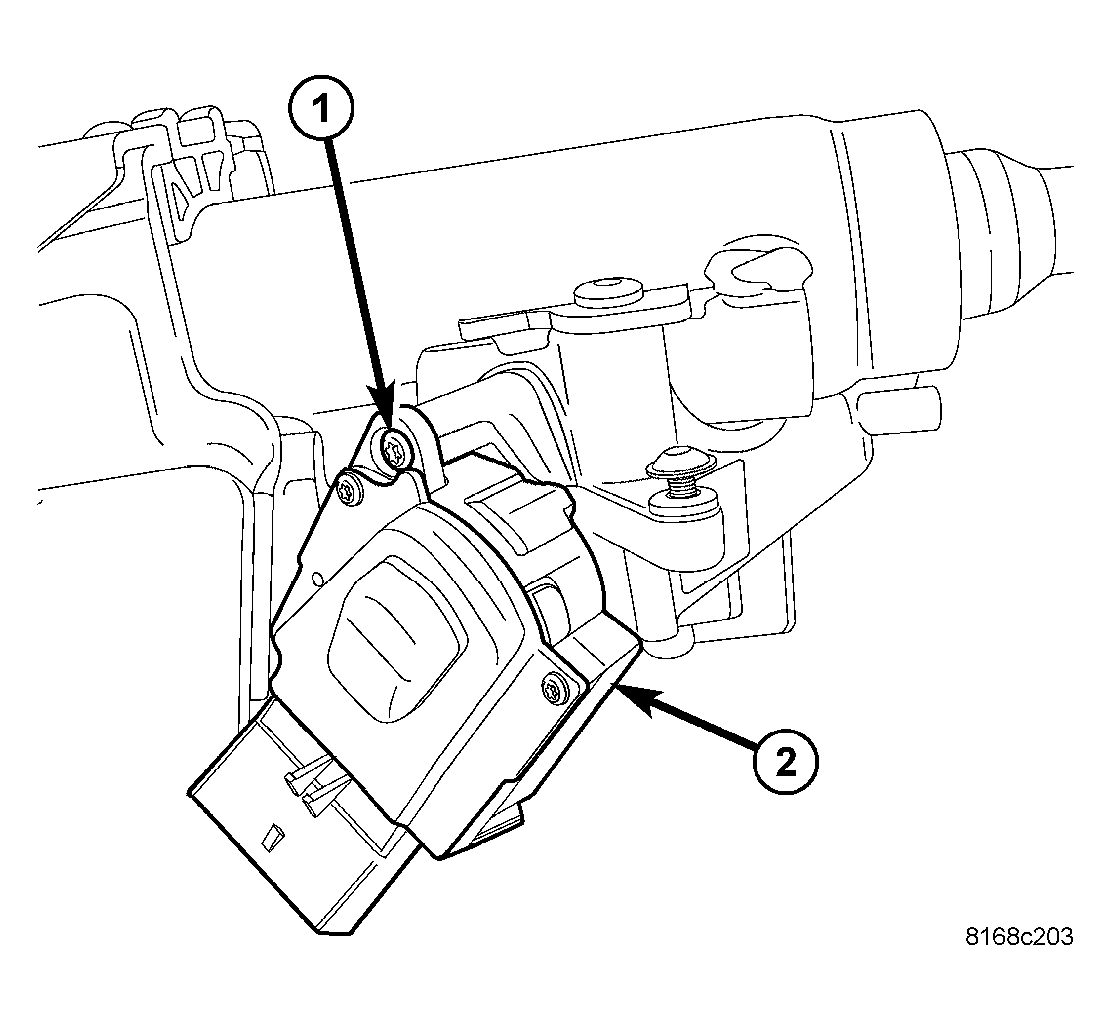

Fig 2: IGNITION SWITCH MOUNTING SCREW
Courtesy of CHRYSLER LLC
Install the ignition switch (2) mounting screw (1). Tighten the screw to 2 N.m (18 in. lbs.).
