Steering Column Control Module: Assembly

Fig 1: RIGHT - STALK ELECTRICAL CONNECTOR
GC0042965Courtesy of CHRYSLER LLC
  1. Connect the right stalk electrical connector.
    Fig 2: RIGHT - STALK RETAINING SCREW
    GC0042964Courtesy of CHRYSLER LLC
  2. Slide the right stalk into the groove and install the one retaining screw.

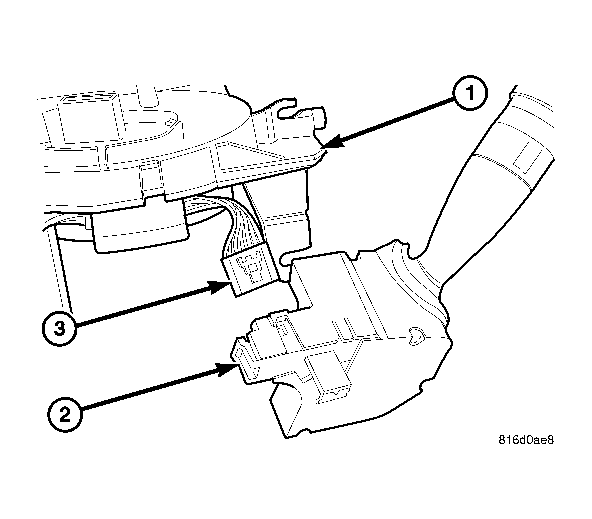

    Fig 3: LEFT - STALK ELECTRICAL CONNECTOR
    GC0041407Courtesy of CHRYSLER LLC
  3. Connect the left stalk switch electrical connector.

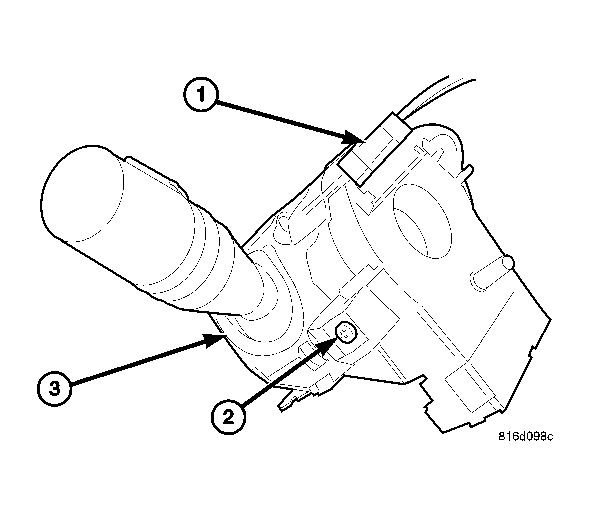

    Fig 4: LEFT - STALK RETAINING SCREW
    GC0041408Courtesy of CHRYSLER LLC
  4. Install the left stalk switch retaining screw.
