B1469-Channel 2 Audio Speaker Output Circuit Shorted Together
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

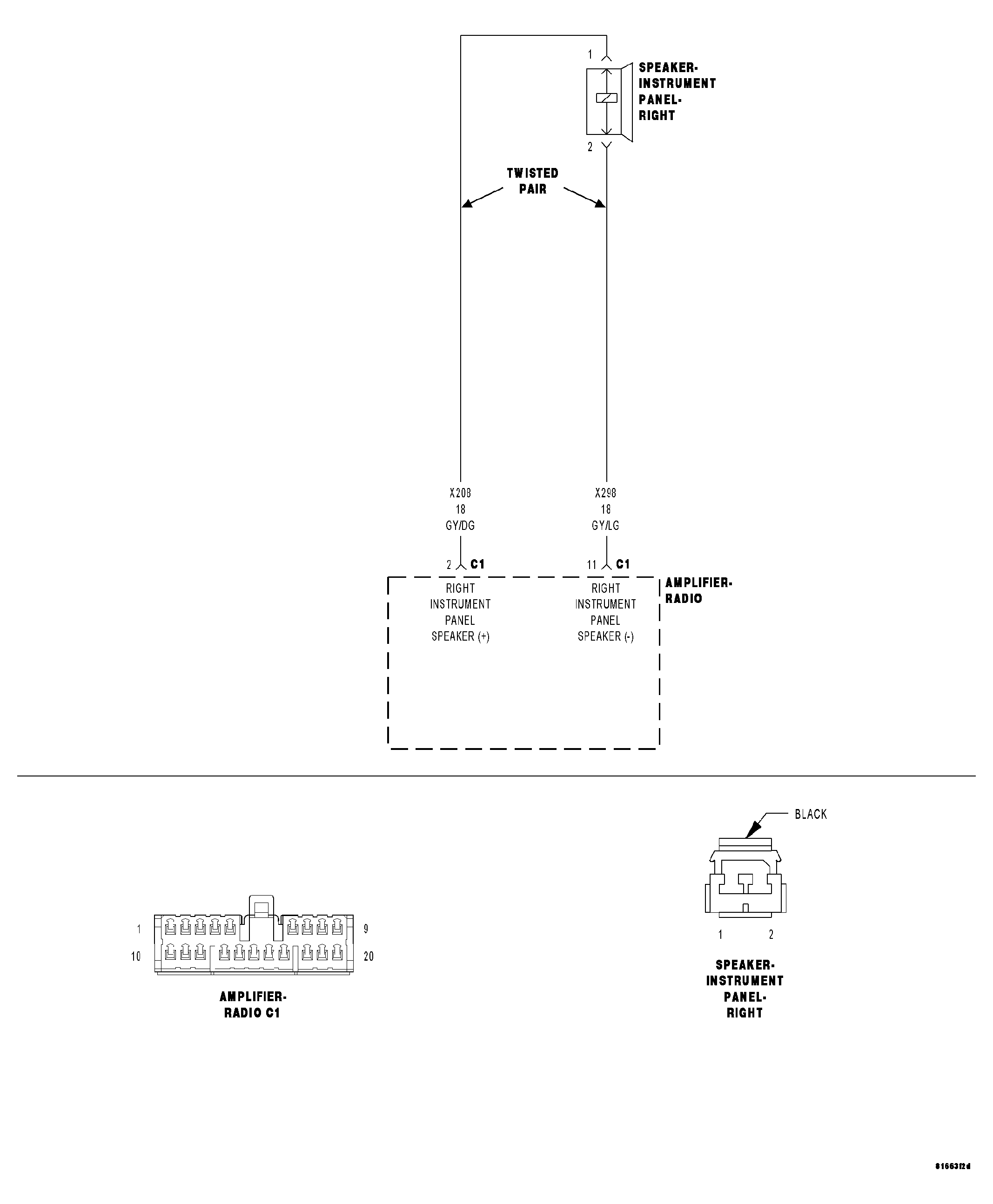

Fig 1: Channel 2 Audio Speaker Output Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
