Circuit Schematic

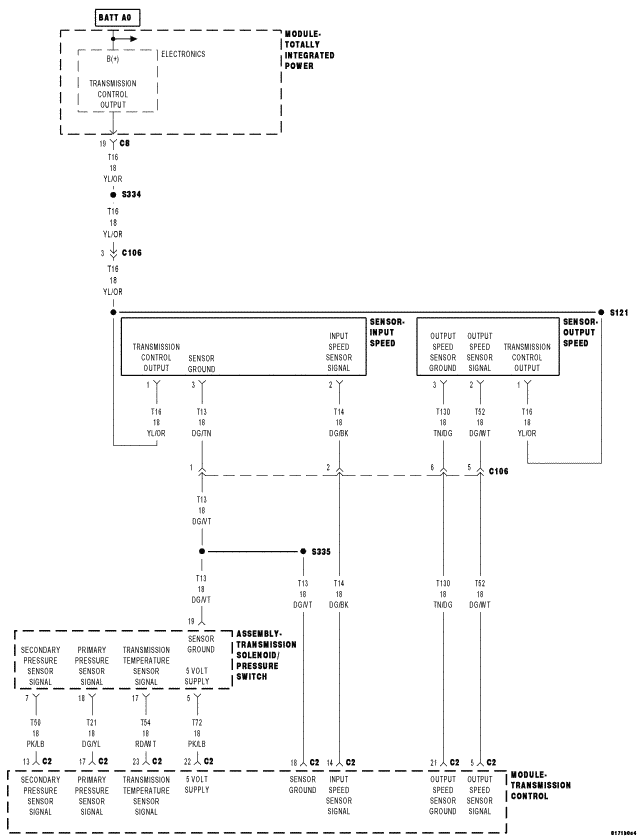

Fig 1: Input Speed Sensor, Output Speed Sensor & Transmission Solenoid/Pressure Switch Assembly Circuit Schematic
GC0056444Courtesy of CHRYSLER LLC
