Circuit Schematic

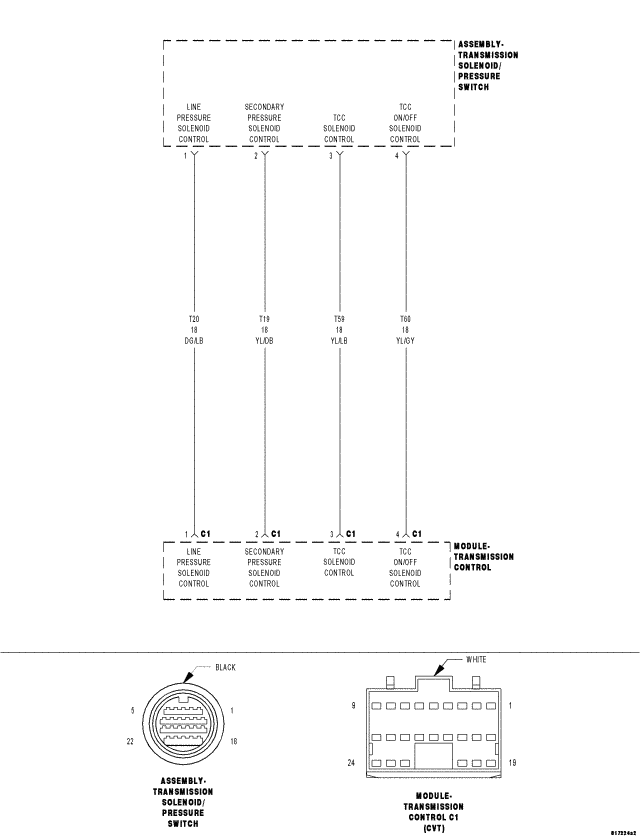

Fig 1: Line Pressure Solenoid, Secondary Pressure Solenoid, TCC Solenoid & TCC On/Off Solenoid Circuit Schematic
GC0056450Courtesy of CHRYSLER LLC
