Circuit Schematic

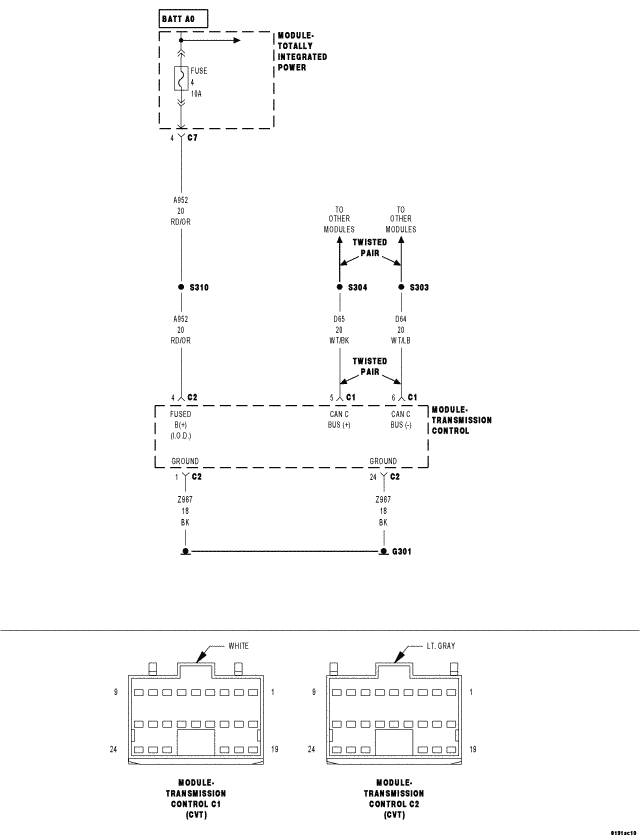

Fig 1: CVT Transmission Control Module Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
