Compass Limited, FWD, Standard
>>
Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
Ignition System
>>
Ignition Control - Electrical Diagnostics
>>
Ignition Control - Electrical Diagnostics
>>
DTC Troubleshooting
>>
B212F-Ignition Run/Acc Control Circuit Low
>>
Circuit Schematic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Schematic

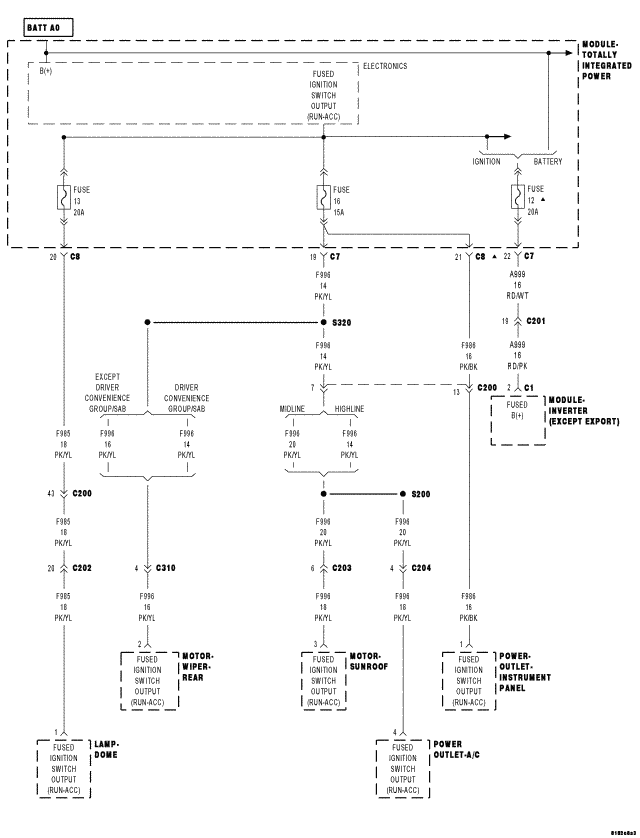

Fig 1: Ignition RUN/ACC Control Circuit Schematic
