Power Transfer Unit
WARNING: This page is about a different variant/trim than selected.
Courtesy of CHRYSLER LLC
- If fluid level is low or fluid change is required fill with MOPAR® MS9020 SAE 80W90 Gear Lube until to bottom of fill plug.

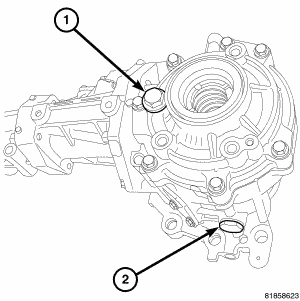

- Tighten fill plug (1) to 32 N.m (24 ft. lbs.).
- Tighten drain plug (2) to 32 N.m (24 ft. lbs.).
