Backup Lamp Switch (Diesel) Connector End View

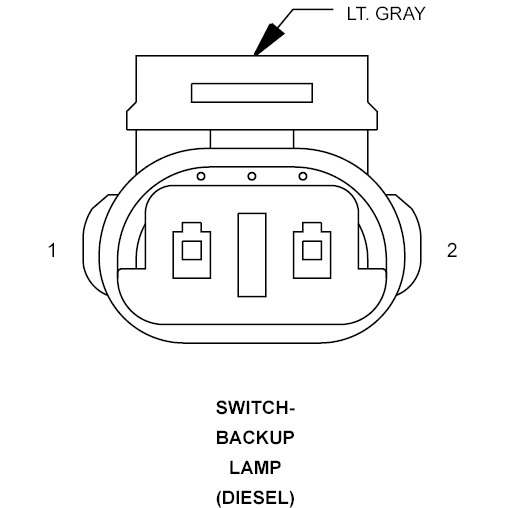

SWITCH-BACKUP LAMP - LT. GRAY 2 WAY (DIESEL)

GMK880300Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z967 18BK/VT GROUND
2 T22 20YL/VT BACKUP LAMP SWITCH SIGNAL
