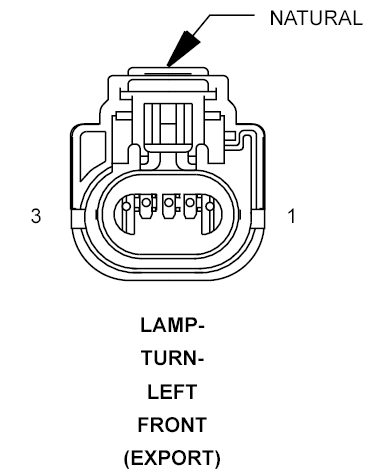

Left Front Turn Lamp (Export) Connector End View
LAMP-TURN-LEFT FRONT - NATURAL 3 WAY (EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z931 20BK/LG |
GROUND |
| 2 |
- |
- |
| 3 |
L61 20WT/LG |
LEFT TURN SIGNAL |
