Horn 1 Connector End View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Horn 1 Connector End View

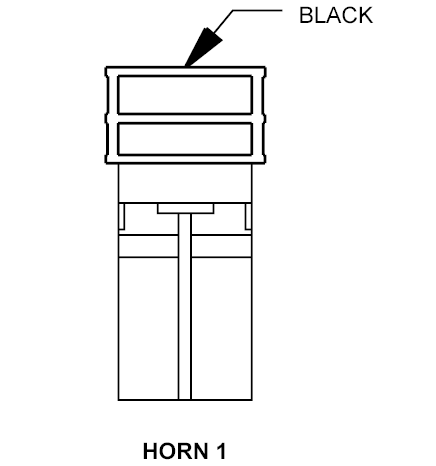

HORN 1 - BLACK 1 WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
X21 20GY/YL
HORN CONTROL OUTPUT
