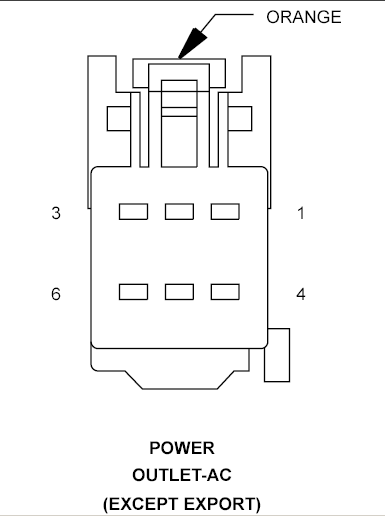

Power AC Outlet (Except Export) Connector End View
POWER OUTLET-AC - ORANGE 6 WAY (EXCEPT EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
P805 18LG/LB |
INVERTER ENABLE SWITCH SIGNAL |
| 2 |
- |
- |
| 3 |
P801 18LG/PK |
110 VOLT AC LINE 1 |
| 4 |
F996 18PK/YL |
FUSED IGNITION SWITCH OUTPUT (RUN-ACC) |
| 5 |
- |
- |
| 6 |
P809 18LG/LB |
110 VOLT AC COMMON |
