A/C Pressure Transducer Connector End View

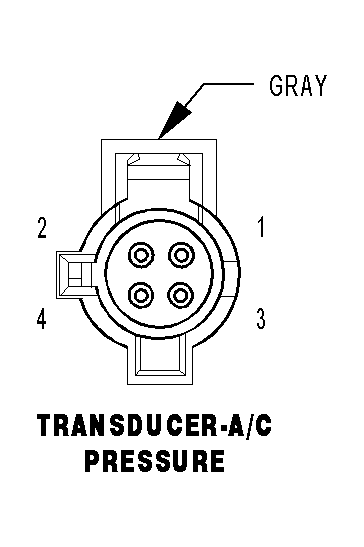

TRANSDUCER-A/C PRESSURE - GRAY 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C918 20BK/LB |
FCM SENSOR RETURN |
| 2 |
F891 20PK/GY |
5 VOLT SUPPLY |
| 3 |
C18 20LB/BR |
A/C PRESSURE SIGNAL |
| 4 |
- |
- |
