Glow Plug 2 (Diesel) Connector End View

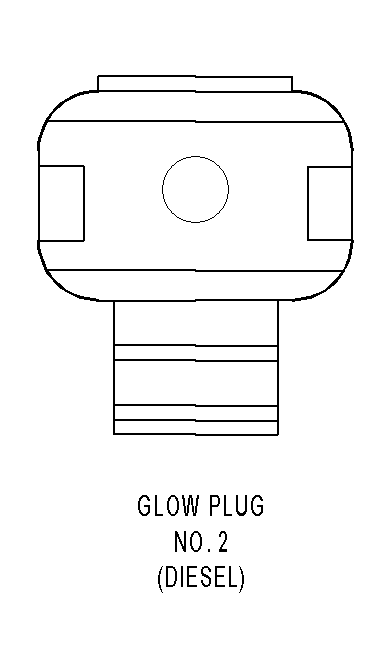

GLOW PLUG NO. 2 (DIESEL) - 1 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A203 16BK/VT
GLOW PLUG NO. 2 CONTROL
