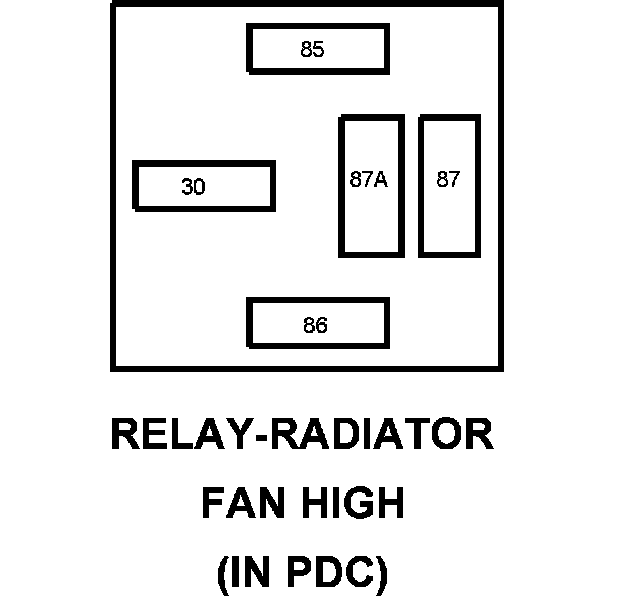

Relay-Radiator Fan High

Component ID: 221
Component : RELAY-RADIATOR FAN HIGH

Connector:
Name : RELAY-RADIATOR FAN HIGH
Color :
# of pins : 0
Qualifier : (IN PDC)




30 FUSED B(+) INTERNAL
85 HIGH SPEED RAD FAN RELAY CONTROL N112 20DB/OR
86 FUSED ASD RELAY OUTPUT K347 20BR/YL
86 FUSED IGNITION SWITCH OUTPUT (RUN-START) INTERNAL
87 HIGH SPEED RAD FAN RELAY OUTPUT N24 12DG/DB
87A - -
