Sensor-Wheel Speed-ABS-Left Rear




Component ID: 431
Component : SENSOR-WHEEL SPEED-ABS-LEFT REAR

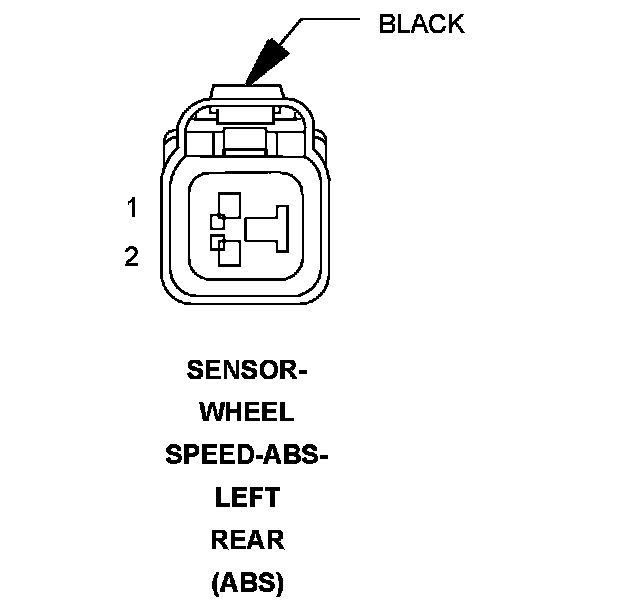

Connector:
Name : SENSOR-WHEEL SPEED-ABS-LEFT REAR
Color : BLACK
# of pins : 2
Qualifier : (ABS)




Pin Description Circuit
1 LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY B4 20DG/GY
2 LEFT REAR WHEEL SPEED SENSOR SIGNAL B3 20DG/YL

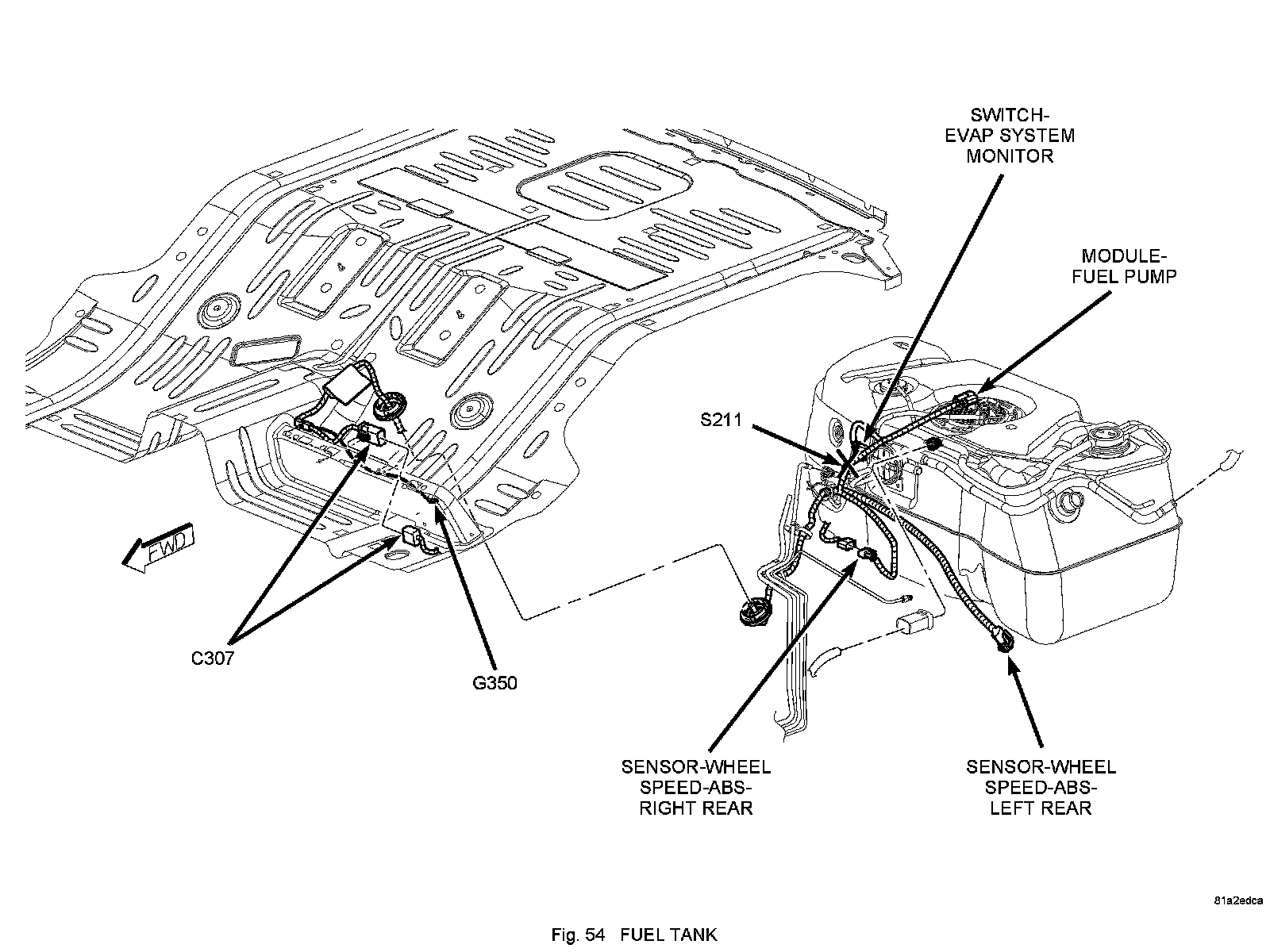

Component Location - 54

Fig. 54:
