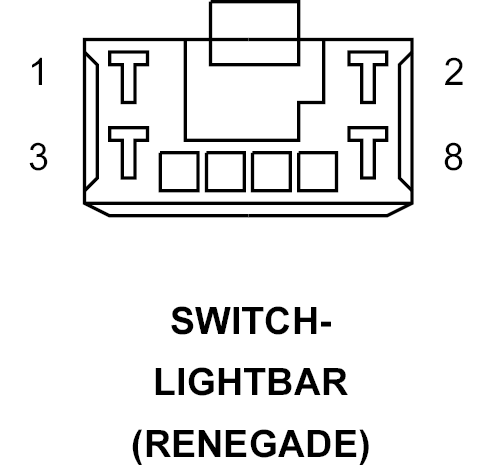

Lightbar Switch (Renegade) Connector End View
SWITCH-LIGHTBAR - 8-WAY (RENEGADE)
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | A904 14RD | FUSED B(+) |
| 3 | L8 14WT/DG | LIGHTBAR SWITCHED OUTPUT |
| 4 | Z940 20BK | GROUND |
| 5 | F942 20PK/LG | FUSED IGNITION SWITCH OUTPUT (RUN-START) (EXCEPT EXPORT) |
| 5 | L78 18WT/OR | FUSED PARK LAMP RELAY OUTPUT (EXPORT) |
| 6 | E2 20OR/BR | PANEL LAMPS DRIVER |
| 7 | L43 18WT/DB | FUSED LEFT LOW BEAM OUTPUT (EXPORT) |
| 8 | L18 20WT/LG | LIGHTBAR SWITCH SENSE |
