DTCS P060D To P1404 - Gas
>>
P1404-EGR Position Sensor Rationality Closed
>>
Circuit Schematic
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Circuit Schematic

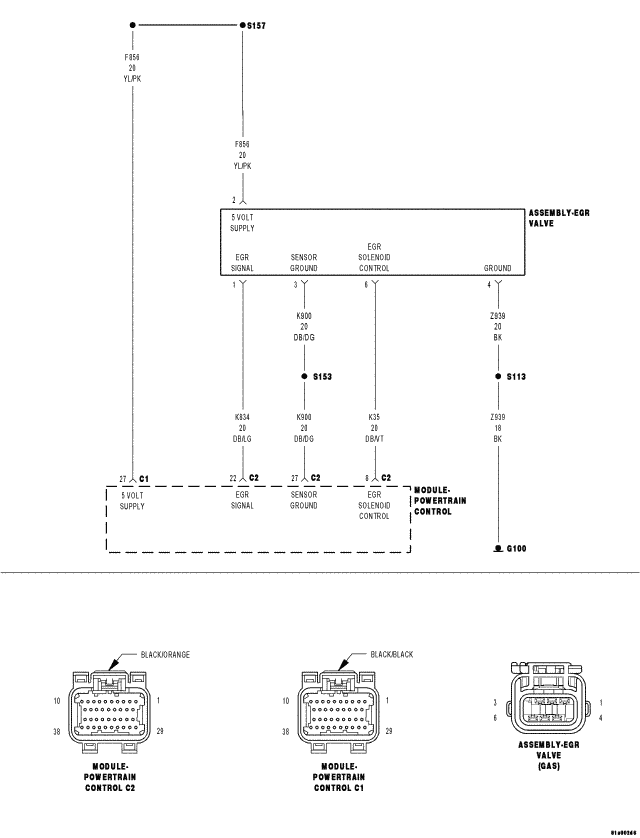

Fig 1: EGR Valve Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
