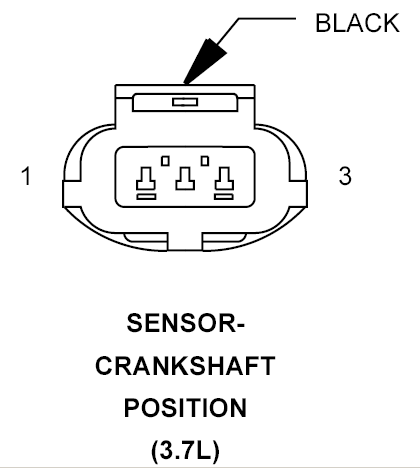

Crankshaft Position Sensor (3.7L) Connector End View
SENSOR-CRANKSHAFT POSITION - BLACK 3-WAY (3.7L)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K24 20BR/LB |
CKP SIGNAL |
| 2 |
K900 20DB/DG |
SENSOR GROUND |
| 3 |
F855 20PK/YL |
5 VOLT SUPPLY |
