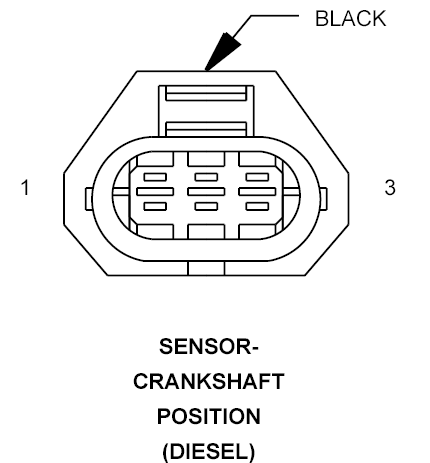

Crankshaft Position Sensor (Diesel) Connector End View
SENSOR-CRANKSHAFT POSITION - BLACK 3-WAY (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K853 20DB/BR |
CKP SIGNAL NO. 1 |
| 2 |
K3 20BR/LB |
CKP SIGNAL NO. 2 |
| 3 |
- |
- |
