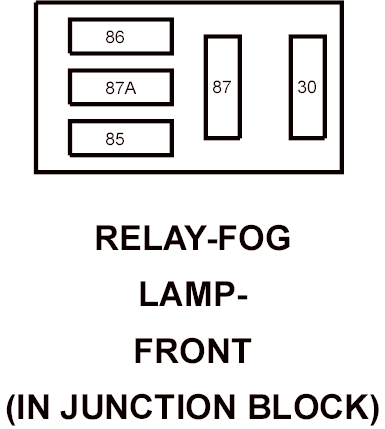

Front Fog Lamp Relay (In JB) Connector End View
RELAY-FOG LAMP-FRONT (IN JB)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
INTERNAL |
FUSED B(+) |
| 85 |
INTERNAL |
FRONT FOG LAMP RELAY CONTROL |
| 86 |
INTERNAL |
FUSED B(+) |
| 87 |
INTERNAL |
FRONT FOG LAMP RELAY OUTPUT |
| 87A |
- |
- |
