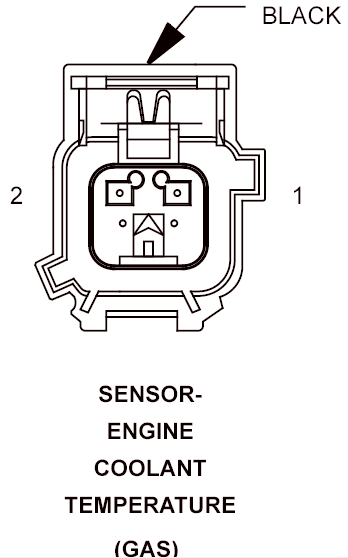

Engine Coolant Temperature Sensor (Gas) Connector End View
SENSOR-ENGINE COOLANT TEMPERATURE - BLACK 2-WAY (GAS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K2 18VT/OR |
ECT SIGNAL |
| 2 |
K900 20DB/DG |
SENSOR GROUND |
