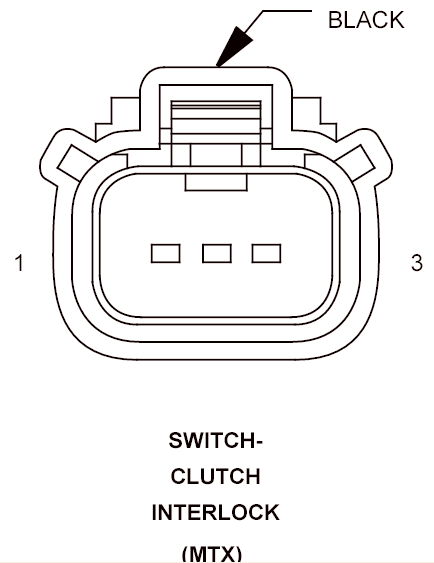

Clutch Interlock Switch (M/T) Connector End View
SWITCH-CLUTCH INTERLOCK - BLACK 3-WAY (MTX)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
T26 18DG/LB |
CLUTCH UPSTOP SIGNAL (DIESEL) |
| 2 |
T141 18YL/OR |
CLUTCH INTERLOCK SIGNAL |
| 3 |
Z905 18BK |
GROUND |
