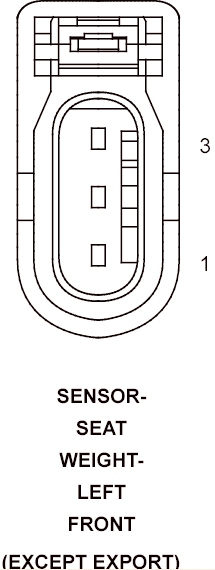

Left Front Seat Weight Sensor (Except Export) Connector End View
SENSOR-SEAT WEIGHT-LEFT FRONT - 3-WAY (EXCEPT EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R728 20LB/YL |
SEAT WEIGHT SENSOR GROUND |
| 2 |
R717 20LG/DG |
SEAT WEIGHT LEFT FRONT SENSOR SIGNAL |
| 3 |
R701 20LG |
SEAT WEIGHT SENSOR 5 VOLT SUPPLY |
