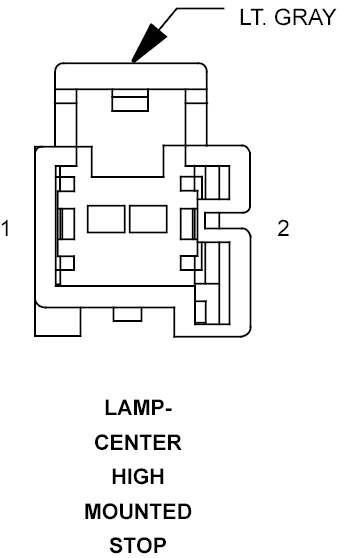

Center High Mounted Stop Lamp Connector End View
LAMP-CENTER HIGH MOUNTED STOP - LT. GRAY 2-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z912 18BK |
GROUND |
| 2 |
L51 18WT/BR |
BRAKE LAMP SWITCH OUTPUT |
