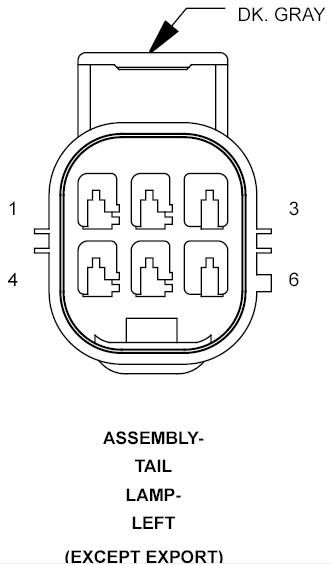

Left Tail Lamp Assembly (Except Export) Connector End View

ASSEMBLY-TAIL LAMP-LEFT - DK. GRAY 6-WAY (EXCEPT EXPORT)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z912 18BK	GROUND
2	L17 18WT/OR	LEFT REAR PARK LAMP CONTROL OUTPUT
3	L63 18WT/DG	LEFT REAR STOP/TURN SIGNAL CONTROL
4	L1 18WT/GY	BACKUP LAMP CONTROL OUTPUT
5	L62 18WT/YL	RIGHT REAR STOP/TURN SIGNAL CONTROL (EXCEPT TRAILER TOW)
6	-	-
