Blower Motor Resistor Connector End View

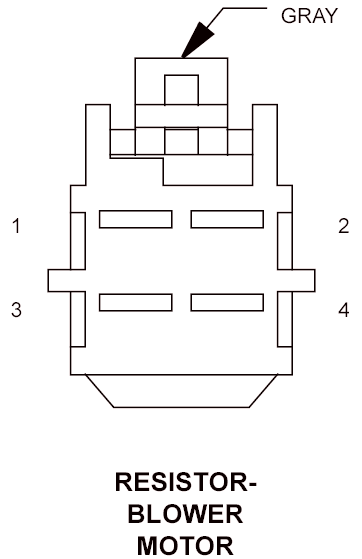

RESISTOR-BLOWER MOTOR - GRAY 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C71 18DB/BR |
BLOWER MOTOR LOW DRIVER |
| 2 |
C73 18DB/VT |
BLOWER MOTOR M2 DRIVER |
| 3 |
C72 18DB/OR |
BLOWER MOTOR M1 DRIVER |
| 4 |
C70 12DB/YL |
BLOWER MOTOR HIGH DRIVER |
