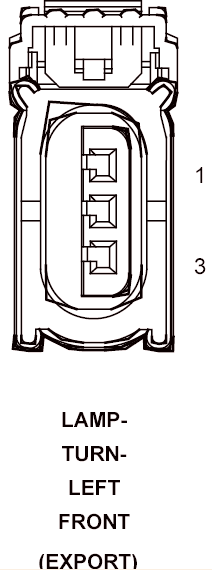

Left Front Turn Lamp (Export) Connector End View
LAMP-TURN-LEFT FRONT - 3-WAY (EXPORT) FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | Z904 18BK | GROUND (EARLY BUILD) |
| 1 | L161 18WT/LG | LEFT FRONT TURN SIGNAL CONTROL (LATE BUILD) |
| 2 | L61 18WT/LG | LEFT FRONT PARK SIGNAL CONTROL (EARLY BUILD) |
| 3 | L161 18WT/LG | LEFT FRONT TURN SIGNAL CONTROL (EARLY BUILD) |
| 3 | Z904 18BK | GROUND (LATE BUILD) |
