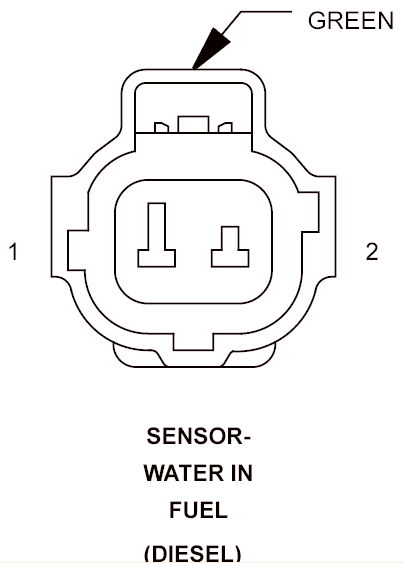

Water In Fuel Sensor (Diesel) Connector End View
SENSOR-WATER IN FUEL - GREEN 2-WAY (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G123 20VT/LG |
WATER IN FUEL SIGNAL |
| 2 |
K923 20BR/YL |
WATER IN FUEL SENSOR GROUND |
