Diagnostic Test

WARNING: This page is about a different car, the 2007 Dodge Nitro. However, it is still accessible from the selected car via links, so may be relevant.

1) TEST FOR INTERMITTENT CONDITION
Turn the ignition on.

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.

With the scan tool, select ECU View.

NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

Does the scan tool display a red X next to the module?

Yes
1. Go to step 2).
No
1. The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
2) (A412) FUSED B(+) CIRCUIT OPEN OR SHORTED

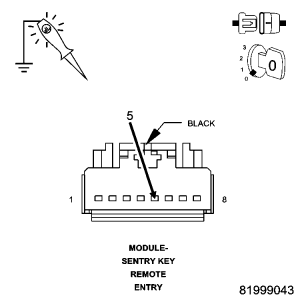

Fig 1: Using 12-Volt Test Light Connected To Ground To Check (A412) Fused B(+) Circuit
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Sentry Key Remote Entry Module harness connector.

Using a 12-volt test light connected to ground, check the (A412) Fused B(+) circuit.

Does the test light illuminate brightly?

Yes
1. Go to step 3).
No
1. Repair the (A412) Fused B(+) circuit for an open or short.
2. Perform SKREEM/SKIM VERIFICATION TEST .
3) (Z910) GROUND CIRCUIT OPEN

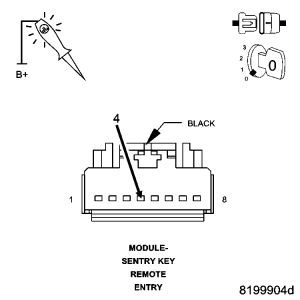

Fig 2: Using 12-Volt Test Light Connected To 12-Volts To Check (Z910) Ground Circuit
Courtesy of CHRYSLER LLC

Using a 12-volt test light connected to 12-volts, check the (Z910) ground circuit.

Does the test light illuminate brightly?

Yes
1. Go to step 4).
No
1. Repair the (Z910) ground circuit for an open.
2. Perform SKREEM/SKIM VERIFICATION TEST .
4) (F20) IGNITION SWITCH OUTPUT (RUN/START) CIRCUIT OPEN OR SHORTED

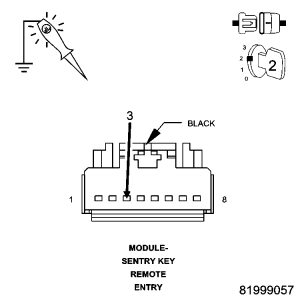

Fig 3: Using 12-Volt Test Light Connected To Ground To Check (F20) Ignition Switch Output (Run/Start) Circuit
Courtesy of CHRYSLER LLC

Turn the ignition on.

Using a 12-volt test light connected to ground, check the (F20) Ignition Switch Output (Run/Start) circuit.

Does the test light illuminate brightly?

Yes
1. Go to step 5).
No
1. Repair the (F20) Ignition Switch Output (Run/Start) circuit for an open or short.
2. Perform SKREEM/SKIM VERIFICATION TEST .
5) (D65) CAN C BUS (+) CIRCUIT OPEN

Fig 4: Measuring Resistance Of (D65) CAN C Bus (+) Circuit Between TIPM C1 Harness Connector And Sentry Key Remote Entry Module Connector
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the TIPM C1 harness connector.

Measure the resistance of the (D65) CAN C Bus (+) circuit between the TIPM C1 harness connector and the Sentry Key Remote Entry Module connector.

Is resistance below 5.0 ohms?

Yes
1. Go to step 6).
No
1. Repair the (D65) CAN C Bus (+) circuit for an open.
2. Perform SKREEM/SKIM VERIFICATION TEST .
6) (D64) CAN C BUS (-) CIRCUIT OPEN

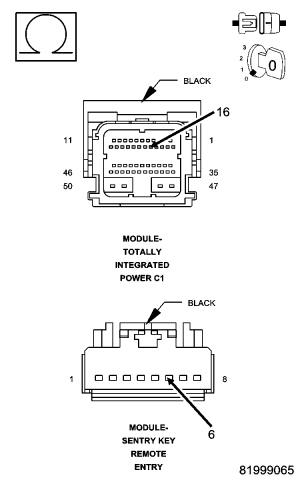

Fig 5: Measuring Resistance Of (D64) CAN C Bus (-) Circuit Between TIPM C1 Harness Connector And Sentry Key Remote Entry Module Connector
Courtesy of CHRYSLER LLC

Measure the resistance of the (D64) CAN C Bus (-) circuit between the TIPM C1 harness connector and the Sentry Key Remote Entry Module connector.

Is resistance below 5.0 ohms?

Yes
1. Replace the Sentry Key Remote Entry Module in accordance with the service information.
2. Perform SKREEM/SKIM VERIFICATION TEST .
No
1. Repair the (D64) CAN C Bus (-) circuit for an open.
2. Perform SKREEM/SKIM VERIFICATION TEST .
