Circuit Schematic

WARNING: This page is about a different car, the 2007 Dodge Nitro. However, it is still accessible from the selected car via links, so may be relevant.

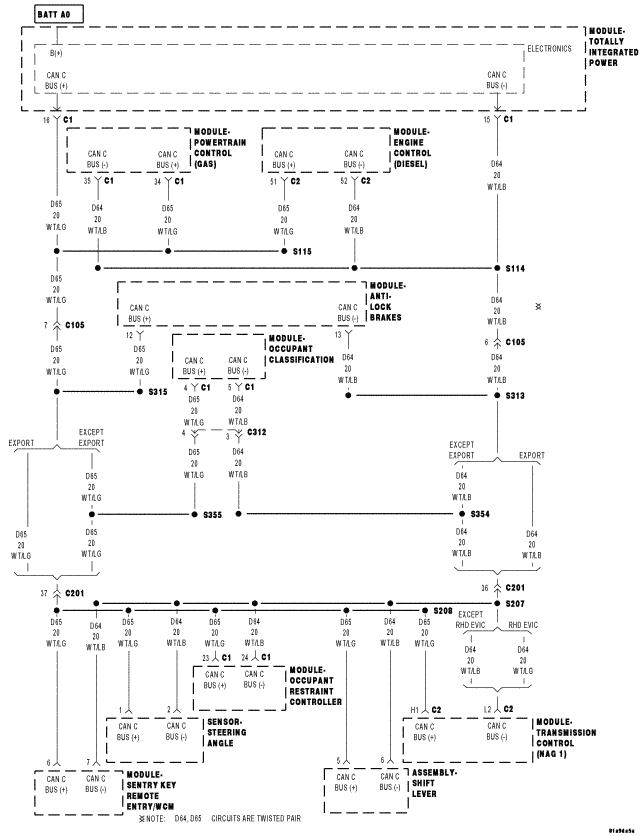

Fig 1: CAN C Bus Circuit Schematic
GC0061435Courtesy of CHRYSLER LLC
