Front Locker Relay (Off-Road) Connector End View

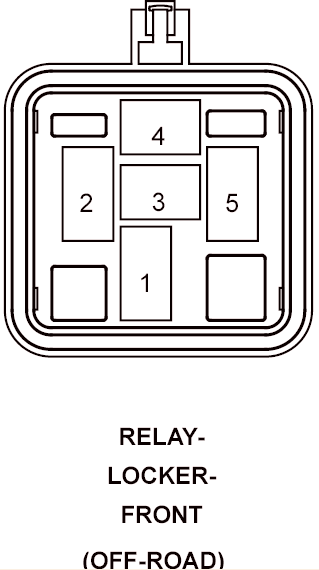

RELAY-LOCKER-FRONT - 5-WAY (OFF-ROAD)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A104 18YL/RD |
FUSED B(+) |
| 2 |
A104 18YL/RD |
FUSED B(+) |
| 3 |
- |
- |
| 4 |
T520 18YL/OR |
FRONT LOCKER RELAY OUTPUT |
| 5 |
G304 20VT/DB |
FRONT LOCKER RELAY CONTROL |
