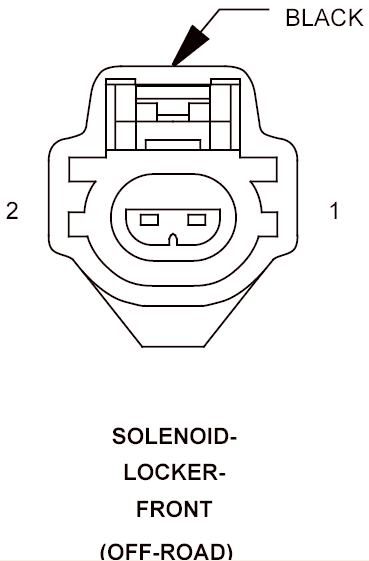

Front Locker Solenoid (Off-Road) Connector End View
SOLENOID-LOCKER-FRONT - BLACK 2-WAY (OFF-ROAD)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
T520 18YL/OR |
FRONT LOCKER RELAY OUTPUT |
| 2 |
Z905 18BK |
GROUND |
