Removal







REMOVAL





1. Disconnect and isolate the negative battery cable.
2. Remove the grille Grille - Removal.

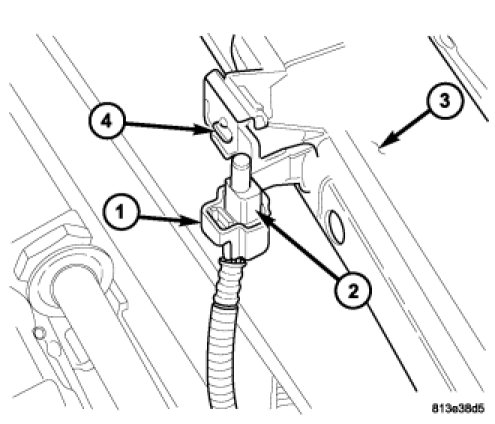

3. Disconnect the wire harness connector (1) from the ambient air temperature sensor (2) located at the top of the front bumper beam (3).
4. Disengage the ambient air temperature sensor from the retaining tabs (4) and remove the sensor.
