Installation

INSTALLATION

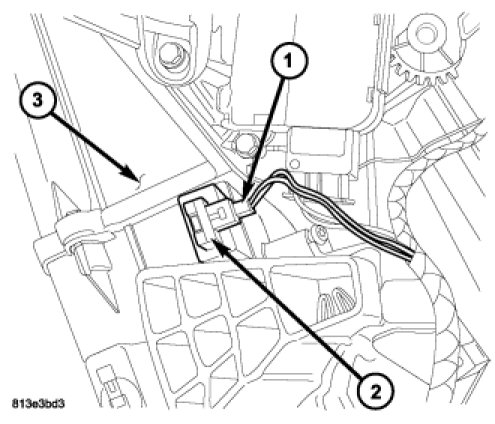

1. Install the evaporator temperature sensor (2) into the left side of the HVAC housing (3). Make sure that the sensor retaining clips are fully engaged in the housing.
2. Connect the HVAC wire harness connector (1) to the evaporator temperature sensor.
3. Install the instrument panel silencer onto the driver side of the instrument panel.
4. Reconnect the negative battery cable.
