Installation

INSTALLATION

NOTE: If the ABM is being replaced with a new ABM is must be reprogrammed with the use of a scan tool.

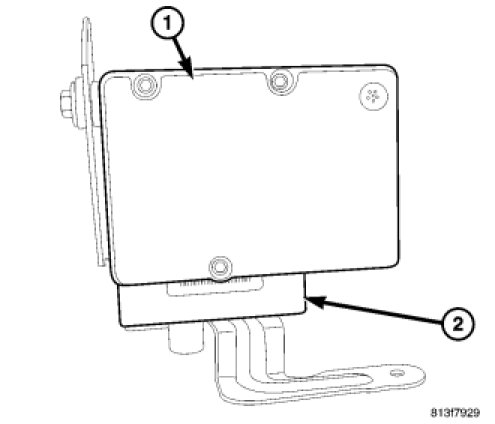

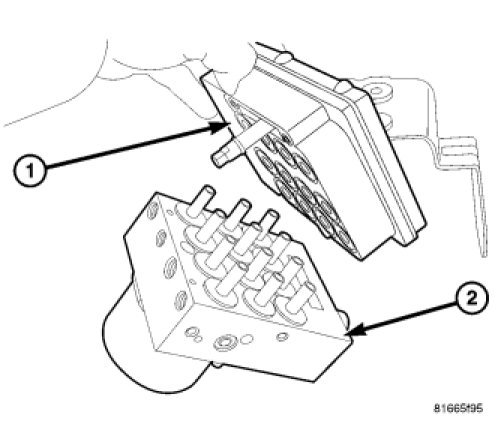

1. Install new seals between the ABM and HCU.
2. Install the ABM (1) to the HCU (2).




3. Install the 3 ABM (1) mounting bolts to the HCU (2) if removed tighten mounting bolts to 12 Nm (9 ft. lbs.).

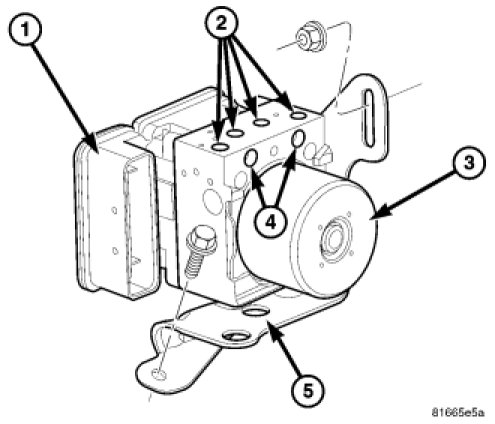

4. Install the HCU (3) with bracket (5) to the vehicle and tighten the 2 mounting nuts.




5. Reconnect the HCU electrical connector (5).

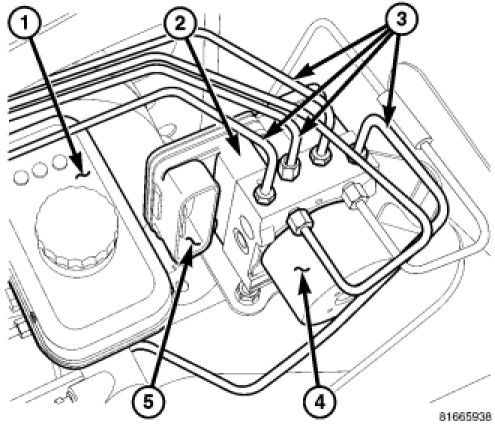

6. Install the 4 chassis lines (3) at the HCU (4).
7. Install the secondary brake tube at the HCU (4).
8. Install the secondary brake tube at the master cylinder.
9. Install the primary brake tube at the HCU (4).
10. Install the primary brake tube at the master cylinder.
11. Install negative battery cable to the battery.
12. Remove the brake pedal prop rod.
13. Bleed base and ABS brake systems,Brake Bleeding.
14. Initialize the ABS module using the scan tool.
