Oil Pan, Engine

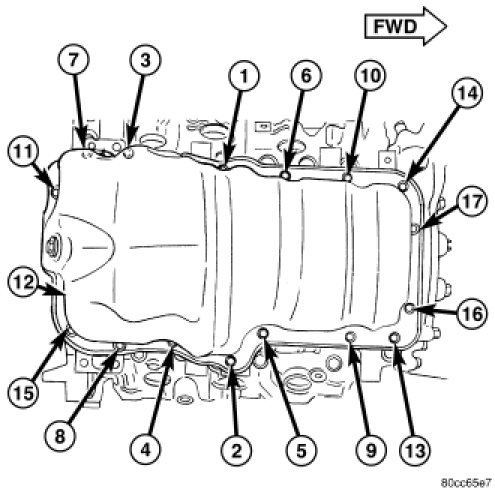

OIL PAN TORQUE AND SEQUENCE






Position the oil pan and install the mounting bolts. Tighten the mounting bolts to 16 Nm (140 in. lbs.) in the sequence shown.
